An indispensable capacitor in the circuit of new energy vehicles

With the advantages of environmental protection and efficiency, new energy vehicles are at the forefront of science and technology. Pure electric cars, plug-in hybrids, and hydrogen fuel cell vehicles all rely on efficient power systems. The capacitor is a key electronic component in the power system. So what kinds of capacitors are there in the circuit of new energy vehicles? How does it work? How to use? What will happen in the future?

Capacitors are electrical products that can store electrical energy, and its basic principle is to rely on the dielectric to create an electric field in the middle of two conductors to store charge. How to measure the ability of a capacitor to hold power? It depends on its Capacitance, which is generally measured in farads (F). In the power system of new energy vehicles, capacitors can not only store energy and release energy, but also smooth the current, filter the wave clean, and raise the power quality.

About the types of capacitors. In the circuit design of new energy vehicles, there are mainly several commonly used capacitors:

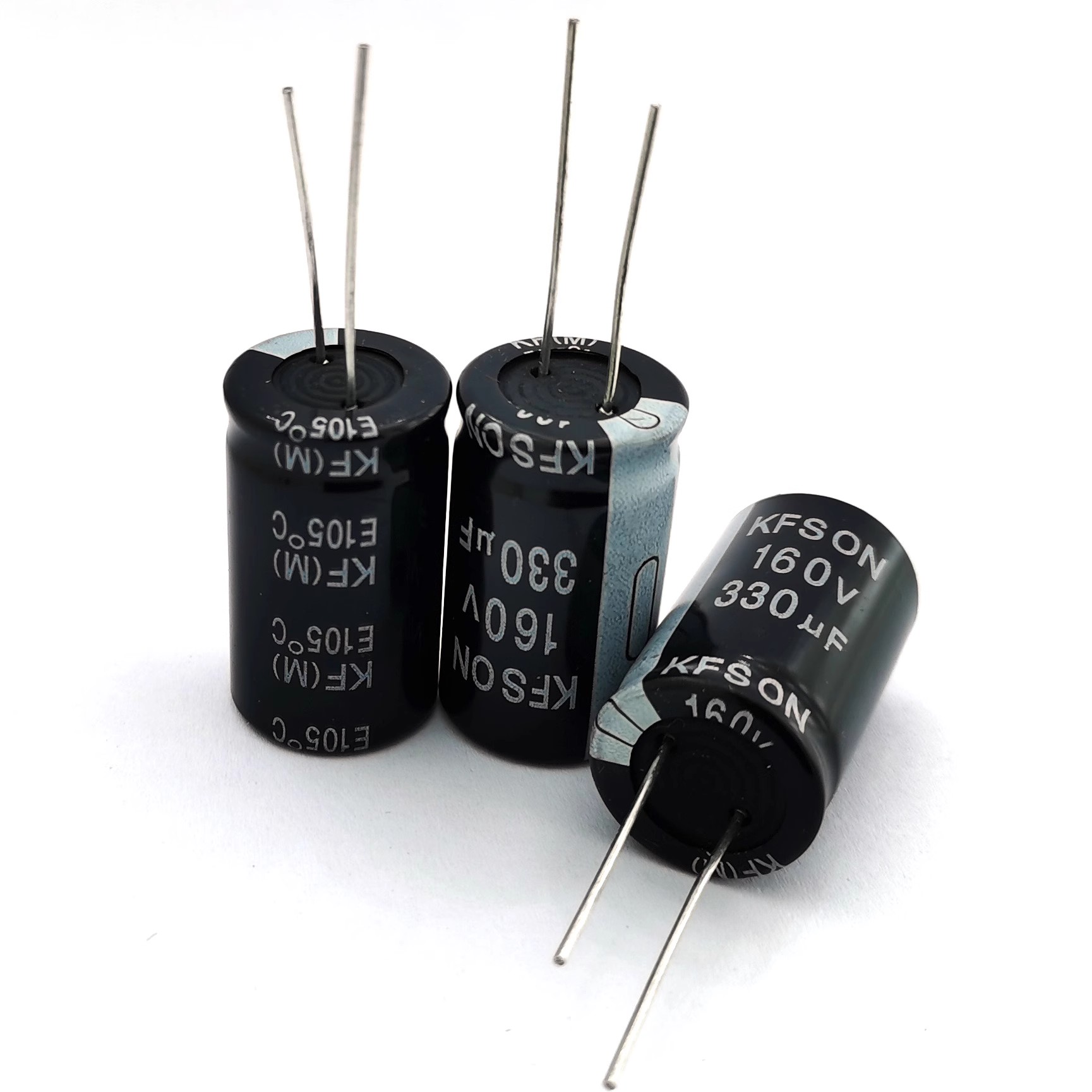

1.Electrolytic capacitors. This thing uses electrolytes as a medium, so it's got a lot of capacity. The advantage is that it is small, the price is not expensive, and it is generally used in power filtering and energy storage. In new energy vehicles, battery management systems and inverters have its figure.

2.Ceramic capacitor. This ceramic capacitor has good electrical performance and high reliability, and is needed in various circuits of new energy vehicles. It has high voltage level and low resistance, which is suitable for high frequency filtering and coupling circuits. Like the electronic equipment of the car, such as the charging controller, the power battery module and so on, it is indispensable.

3.Thin film capacitor. This film capacitor generally uses plastic film as the dielectric, has good temperature characteristics and low loss. In new energy vehicles, it is used in high-voltage DC converters and motor controllers, which can give a stable power output.

4.Supercapacitor. This is a new type of capacitor, the capacity is particularly large, charge and discharge is particularly fast. In new energy vehicles, it can be used as an energy storage device, reduce and decompress the battery, make the car accelerate more vigorously, and the efficiency of braking energy recovery is also higher. It generally works with the battery, relying on rapid charging and discharging to improve the overall energy management efficiency of the vehicle.

About the working principle of capacitors. The basic working principle of this capacitor is to store charge between the two poles under the action of voltage. In new energy vehicles, capacitors can charge and discharge quickly, and with the battery, inverter these electrical components, you can allocate electricity more efficiently. The process of capacitor charge and discharge is related to the establishment and disappearance of electric field, and this process can be analyzed by the RLC (resistance - inductance - capacitance) characteristics of the circuit.

If the capacitor is put into the circuit of the new energy vehicle, it can release the stored energy at once, so that the current can be more stable and the voltage fluctuation is small. This is very important when the car is accelerating, braking hard and cruising.

Now look at the application of capacitors. In the power system of new energy vehicles, the use of capacitors:

1.In the energy storage system. In new energy vehicles, capacitors are often used together with battery packs to create a composite energy storage system. By relying on the rapid charging and discharging characteristics of the capacitor, the efficiency of the entire energy storage system can be improved, so that the battery will age slower and lose less, so that the battery can be used for longer.

2.On the power filter. In a power supply system, capacitors filter out high-frequency noise from the current. This ensures the quality of the power supply, so that the motor drive system and other electronic equipment can work normally.

3.On the voltage balance. The capacitors also balance the voltage in the battery management system of electric vehicles. It can adjust the voltage between different cells, helping to manage the charge and discharge of the battery more efficiently, so that the performance of the entire battery pack can be stronger.

4.In the energy recovery system. When the new energy vehicle brakes, the capacitor can quickly absorb the kinetic energy and store it, and then release the energy when the car accelerates, so that the efficiency of energy utilization can be improved. Especially when driving in the city, it is always on and off, and the role of capacitors in energy recovery is particularly obvious.

About the future development direction.

With the continuous progress of new energy vehicle technology, the design and application of capacitors are also constantly developing. In the future, researchers are looking for new materials and structures of capacitors, and want to improve the performance of capacitors. Capacitors using nanomaterials and new electrolytes, for example, may lead to breakthroughs in energy density, charge and discharge speed, and durability. In addition, with the trend of intelligence and digitalization, the intelligent management system of capacitors will slowly take shape, which can provide us with more accurate and efficient power management methods.

Such an analysis can see that the role of capacitors in improving vehicle performance, extending battery life, and optimizing energy management is quite large. In the future, the technology will continue to improve, and the application of capacitors will certainly be more extensive and the effect will be better.
