World's smallest width floating connector release

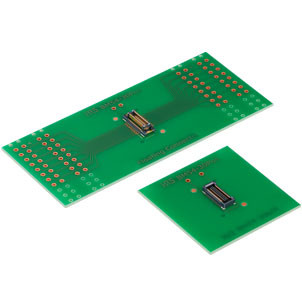

Hirose has developed a board-to-board connector that combines floating capabilities and miniature dimensions to meet automotive specifications. The BM54 series further features a compact design, offering the world's smallest width in its class. This space-saving car connector is compact with a pitch of 0.4mm and a stack height of 3mm to 4.5mm.
This connector family is ideal for PCBS with multiple connector groups, offering a wide floating range of ±0.4mm in the XY direction. By absorbing plate alignment error, floating simplifies assembly and improves assembly efficiency. The two-point contact design ensures high contact reliability and rugged performance in harsh automotive conditions.
The series has a heat resistance of 125C and is suitable for automotive and industrial equipment. It also supports PCI-ex Gen4 (16Gbps) and MIPI D-PHY Ver.2.1, making it ideal for automotive front cameras, rear/side cameras, displays, millimeter-wave radar and liDAR systems.
