Murata's cellular terminals are suitable for a variety of applications including smart homes and sensor networks

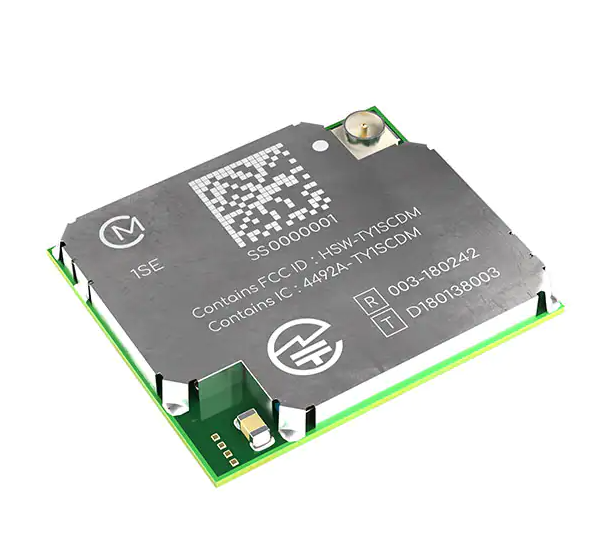

Murata's LBAD0ZZ1SE-743 cellular terminal equipment features highly integrated (MCU, eSIM and LTE-M/NB1 modem), certified terminal equipment with antenna connectivity for easy integration with many different types of applications. The technology is used for iot devices to connect directly to a 4G network without a gateway and typically run on battery power.
LTE-M includes eMTC (Enhanced Machine-Type Communications), a low power Wide area network (LPWAN) radio technology standard developed by 3GPP that enables a wide range of cellular devices and services (especially machine-to-machine and iot applications). Since no carrier or regulatory certification is required, this ultra-small, highly integrated terminal device speeds time to market. The ultimate benefit is shorter development times and faster time to market for terminal devices that require LTE Cat M1 connectivity.
Narrow Band Internet of Things (NB-IoT) is a standards-based low power wide area (LPWA) technology designed to support a wide range of iot devices and services. NB-IoT has significantly improved the power consumption, system capacity, and spectral efficiency of user devices, especially in terms of deep coverage.
Features
● Equipped with the STMicroelectronics STM32L462RE Arm Cortex M4 with 512 kB flash memory and 160 kB SRAM
● Small size in LGA package (Max. 15.4 mm x 18.0 mm x 2.5 mm)
● Input voltage: 3.3V
● 1 MB onboard serial flash memory
● Certified terminal equipment with antenna connection for easy integration
- Faster time to market
- Reduce development time and cost for developers/device manufacturers who need LTE Cat M1 connectivity
- No additional carrier or regulatory certification is required
- ESIM is included in the authentication
● SIM card includes internal eSIM (WLCSP) with Truphone profile pre-installed
● Low power consumption gives battery life up to 10 years
● Antenna configuration: U.F.L antenna connector
● OTA firmware upgrade
● Secure startup architecture and powerful hardware-based security framework
● Comply with RoHS specification
● Operating temperature: -40°C to +85°C
Applications
● Asset tracking
● Building automation
● Health/medical
● Industrial Internet of things
● Sensor network
● Smart home
