STMicroelectronics Smart, flexible NFC Tracker Evaluation Board includes a comprehensive software library

STMicroelectronics Smart and flexible NFC tracker evaluation boards STEVAL-SMARTAG2 and STEVAL-SMARTAG1 are equipped with sensors. They include a comprehensive software library and a sample application for monitoring and logging sensor data via NFC from an Android or iOS device.

The ultra low Power Sensor Node evaluation board is mounted with a ST25DV NFC tag, a STM32L4 or STM32L0 Arm Cortex-M0+, environmental sensors (temperature, humidity, and pressure), and motion (accelerometer) sensors. The STEVAL-SMARTAG2 evaluation board can be equipped with a battery charger powered by a full wave rectifier for NFC energy collection. STEVAL-SMARTAG1 has NFC collection function for power supply and battery holder for CR2032 battery.

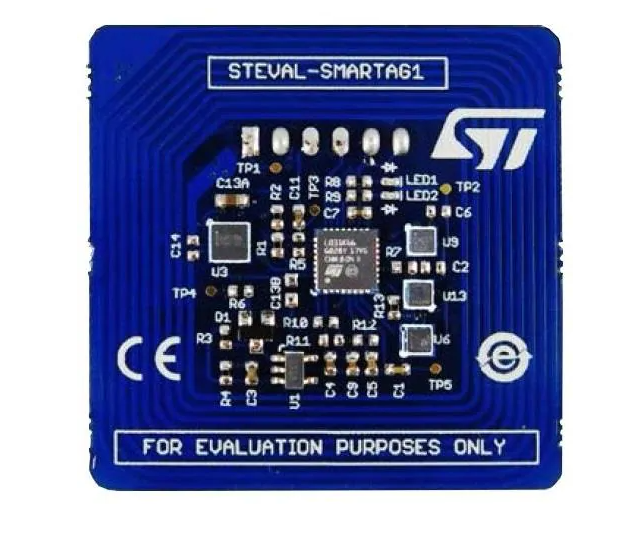

STEVAL-SMARTAG1 Features

● The ST25DV64K dynamic NFC tag solution is based on 64 Kb (8 bytes) EEPROM with I²C interface, fast transfer mode and power collection
● STM32L031K6 Ultra-low power Arm Cortex-M0+MCU, operating frequency is 32 MHz, with 32 Kb flash memory, 8 Kb RAM
● LIS2DW12 ultra-low power consumption, high performance, three axis accelerometer
● LPS22HB Ultra-compact piezoresistive absolute pressure sensor, available as a digital output barometer: 260 hPa to 1260 hPa
● HTS221 capacitive digital sensor to measure relative humidity and temperature
● STLQ015 Low voltage differential linear voltage regulator power management
● CR2032 Battery Powered (not included)
● STM32Cube Function Pack (FP-SNS-SMARTAG1)
● Android (Google Play) and iOS Demo App (ST SmarTag)

STEVAL-SMARTAG2 Features

● NFCSENSORTAG.BOX: Optimized shape and enclosed in a plastic case for testing
● ST25DV64KC-JF6D3 Dynamic NFC/RFID tag IC with 64 Kbit EEPROM and fast transfer mode capability
● STM32L4P5-CGU6 Ultra-low power Arm Cortex-M4 32-bit MCU+FPU, 150 DMIPS, up to 1 MB flash memory, 320 KB SRAM, LCD-TFT, External SMPS
● LSM6DSO32X iNEMO 6 DoF inertial module with 32g accelerometer and embedded machine learning kernel
● LIS2DUXS12 Ultra-low power 3-axis intelligent accelerometer with machine learning kernel and Qvar
● H3LIS331DL MEMS Motion Sensor: Low power, high g 3-axis digital accelerometer
● LPS22DF Low Power high precision MEMS nano Pressure Sensor: 260 hPa to 1260 hPa absolute digital output barometer
● STTS22H low voltage, low power consumption, 0.5 °C accuracy I²C/SMBus 3.0 temperature sensor
● VD6283TX ambient light sensor with hybrid filter multispectral and embedded light scintillation engine
● STLQ020 200 mA ultra low static current LDO
● STBC15 Ultra Low current Consumption Linear Battery Charger (Optional component, not installed)
● STSAFE-A110 Authentication, state-of-the-art security for peripherals and Internet of Things (IoT) devices (Optional component, not installed)
● M41T62LC Low Power Serial Real Time Clock (RTC) with Alarm (Optional Component, not installed)
● CR2032 or LIR2032 Battery powered (not included)
● STM32Cube Function Pack (FP-SNS-SMARTAG2)

Applications

● Internet of things
● Supply chain and cold chain management
● Smart buildings, homes and cities
● Retail and apparel
● Intelligent packaging
● Medical and pharmaceutical
● Battery-free detection
● Smart agriculture (soil control, animal tracking, and more)
● Asset tracking
● Impact detection
