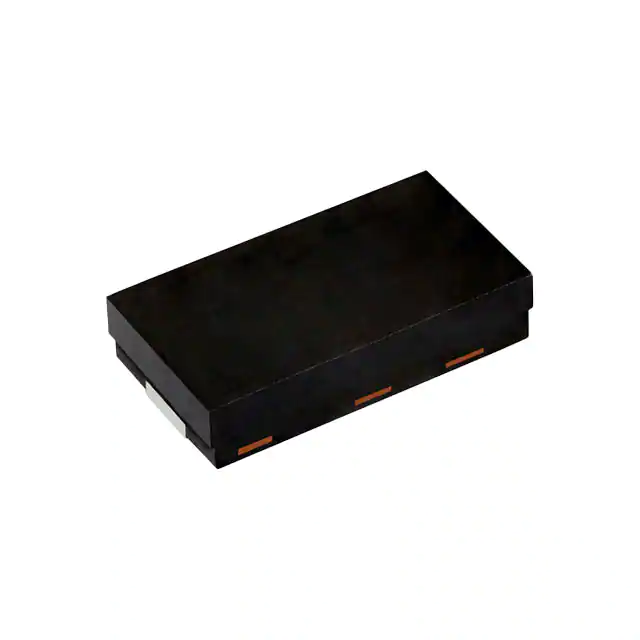

Vishay introduces rectifier in DFN3820A package

Vishay's 200 V FRED Pt ultra fast rectifier comes in a thin DFN3820A package. These devices offer 1 A, 2 A, 3 A, and 5 A current ratings, up to more than double that of the equivalent 200 V FRED Pt SMP (DO-220AA) package.

The rectifier is characterized by low leakage current, low forward voltage drop and low power loss. These devices also include wettable flanks that can be easily detected by AOI (Automatic Optical Detection) without X-ray examination. These rectifiers have an ultra-thin profile of 0.88mm (making them ideal for self-mount) and comply with the AEC-Q101 and Vishay automotive grade standards.

Features

● Wettable side allows easy inspection using AOI
● Low leakage current
● Perfect for automatic mounting
●Low forward voltage drop and low power loss
● Very thin height, typical height is 0.88mm
● For PFC and CRM buffer operations
● 1 A, 2 A, 3 A and 5 A are available
● Grade 1 MSL as defined in J-STD-020 is achieved with a maximum peak LF of +260°C
● Comply with AEC-Q101 and Vishay automotive class standards

 Applications

● DC/DC converter
● Dual voltage fuel injector driver
● ABS
● Airbag
● LED lighting as a fixture
● Buffer, current and polarity protection diode
