Murata Power Solutions PicoBK MYRLP-F-RD/RE series DC/DC converter

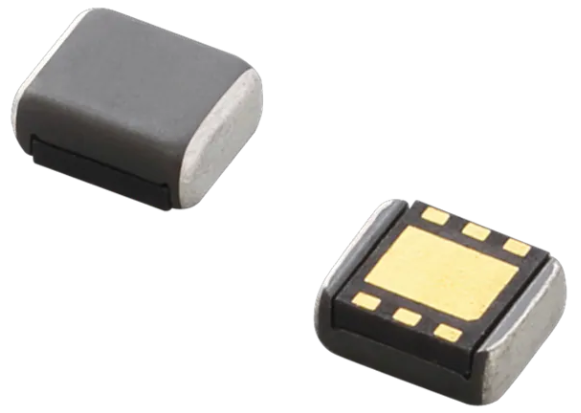

Murata Power Solutions PicoBK MYRLP-F-RD/RE series DC/DC converters are synchronous step-down DC/DC converters with integrated inductors and control ics in a 2mm x 2.5mm x 1mm miniature size package. A space-saving power supply can be configured by adding two external capacitors.

These converters use ultra-low current consumption circuits and PFM control to achieve high efficiency at light loads. The 1.8V to 6V operating voltage range supports applications that require an internal fixed output voltage of 0.5V to 3.60V. Murata Power Solutions PicoBK MYRLP-F-RD/RE DC/DC Converter with built-in undervoltage locking (UVLO) function is compatible with green operation. The series is free of lead and halogens and complies with EU RoHS directive.

Features

● Integrated inductors in a single package
● Designed for noise reduction
● Compatible ceramic capacitor
● Green run compatibility
● No lead, no halogen
● Comply with EU RoHS directive

Applications

● Smart meter
● Sensor module
● Wearable device
● Energy harvesting equipment
● Low power rf
● Backup power circuit
● Smart card
● A device with a lithium battery

Specification

● Input voltage range: 1.8V to 6.0V
● Output voltage Settings: 0.5V to 3.60V
● Output current: 150mA
● Power supply current: 200nA (VOUT=1.8V)
● Typical efficiency: 86%
● Size: 2mm x 2.5mm x 1mm (W x L x H)
